Industrial Timers
Leading Wholesaler, Trader, Distributor, Retailer of ANALOG FORWARD PAUSE REVERSE TIMER, ATMR PS Analog Timer, C100-U, DC SUPPLY CYCLIC TIMER, Digital Pressettable Timer, on delay timer, programmable timer and Star Delta Timer from Navi Mumbai.
| Business Type | Supplier, Retailer, Wholesaler, Trader, Distributor |
| Brand Name | MISTURA |
| Material | Plastic |
| Color | Blue, Blue |
| Condition | New |
| Application | Industrial, Electrical |
| Voltage | 220v,230V,230 - 230 V AC / 415 -415V AC |
| Display Type | Analog |
| Type | Analog Timer, Reverse Forward Switch,Analog Forward Reverse Timer |
| Frequency | 50 - 60 Hz |
| Warranty | 1 Yr, 1 Year |
| Country of Origin | India |
| Model Name/Number | XMR109 |
| Output | 1-Relay |
| Rated Current | 5 Amp |
| Mounting Type | Panel Mounting Timer |
| Size | 22.5 mm (H)*75mm (W)*101 mm (D) |
| Timer Type | Analog |
| Port | Courier |
| Payment Terms | L/C, D/A, D/P, T/T |
| Delivery Time | 2-3 day |
Preferred Buyer From
| Location | Anywhere in India |

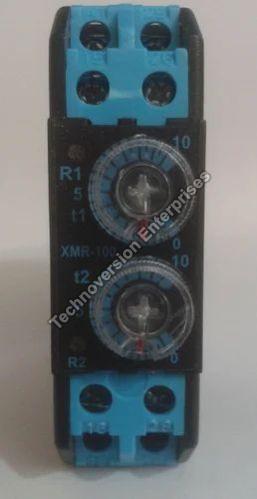

ANALOG FORWARD PAUSE REVERSE TIMER -
Model - XMR100
Mode - Forward pause Reverse
Output Contact - Relay-1 F & R, Relay-2 Pause
Time Ranges - Time: 1/10 Sec/Min/Hr,
Hold: 10/100 Sec
Supply Voltage - 230VAC/415VAC (Factory Set)
| Business Type | Supplier, Retailer, Wholesaler, Trader, Distributor |
| Brand Name | Parahex |
| Material | Plastic |
| Color | BLACK |
| Condition | New |
| Application | Industrial, Industrial, Research Application,Laboratory |
| Voltage | 220v, 220v |
| Display Type | Analog |
| Type | Analog Timer |
| Frequency | 50 - 60 Hz |
| Country of Origin | India |
| Model | ATMR-PS |
| Current | 5A |
| Port | Courier |
| Payment Terms | L/C, D/A, D/P, T/T |
| Delivery Time | 2-3 day |
Preferred Buyer From
| Location | Anywhere in India |

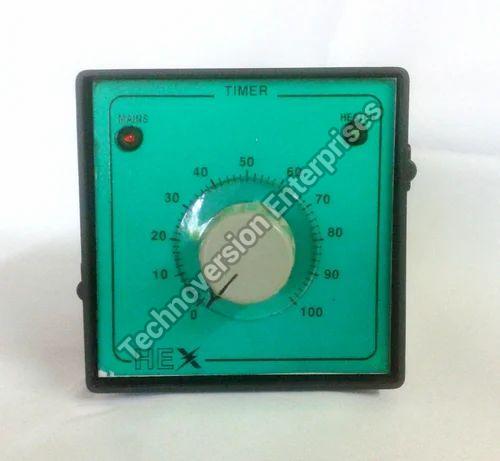

ANALOG TIMER (pot setting) -
Range : 0-10/100/sec./min, potentiometric setting
ON-OFF delay
O/P - 2c/o relay 6A
Size (mm) -
72 x 72 x 65
96 x 48 x 65
96 x 96 x 110
| Business Type | Supplier, Retailer, Wholesaler, Trader, Distributor |
| Brand Name | MISTURA |
| Current Type | DC, AC |
| Color | Blue |
| Condition | New |
| Application | Industrial |
| Feature | Easy To Install, Proper Working, Sturdy Construction, Superior Finish, Accuracy,Auto Controller,Durable,High Performance,Stable Performance |
| Type | Adjustable Cyclic Timer,Analog Timer |
| Input Voltage | 230V |
| Frequency | 50hz, 50hz,50 - 60 Hz,50hz |
| Phase | Single |
| Warranty | 1yr, 1Year,1yr |
| Cooling System | Air Cooling |
| Country of Origin | India |
| Model | C-100 |
| Port | Courier |
| Payment Terms | L/C, D/A, D/P, T/T |
| Delivery Time | 2-3 day |
Preferred Buyer From
| Location | Anywhere in India |

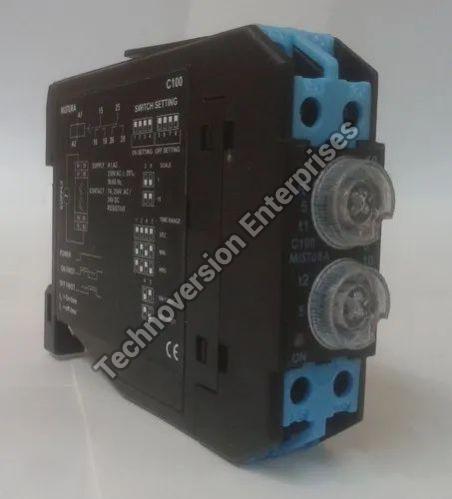

C100-U, CYCLIC TIMER -
Model - C100
Mode - Cyclic
Output Contact - Relay-1, Relay-2
Time Ranges - 1/10 Sec/Min/Hrs
Supply Voltage - 20VAC to 250VAC, 12VDC to 250VDC
| Business Type | Supplier, Retailer, Wholesaler, Trader, Distributor |
| Brand Name | MISTURA |
| Material | Plastic |
| Driven Type | 230V |
| Color | BLACK |
| Application | Industrial, Research Application,Laboratory |
| Length | 10-15cm |
| Feature | Durable, Easy To Use, High Accuracy, Light Weight |
| Voltage | 230V |
| Display Type | Digital, LED |
| Width | 10-20mm20-30mm |
| Type | Programmable Digital Timer, Digital Pressettable Timer (Multirange - Thumbwheel Setting) |
| Max. Current | 1AMP |
| Max. Voltage | 230V |
| Temperature Range | 10-50C |
| Warranty | 1-YEAR |
| Country of Origin | India |
| Model Name/Number | DT9612 |
| Timing Capacity | 999 Hrs |
| Display Digit | 3-Digit |
| Phase | Single Phase |
| Frequency | 50 Hz |
| Operating Voltage | 220 V |
| Power Source | Electric |
| Port | Courier |
| Payment Terms | L/C, D/A, D/P, T/T |
| Delivery Time | 2-3 day |
Preferred Buyer From
| Location | Anywhere in India |
Digital Timer with Thumbwheel Setting (2/3 Digit Display)
Two Multi range selection switch in front for range selection
1) Model No.- DT9611
Size (HxWxD)mm - 96 X 96 X 50
2) Model No.- DT7211
Size (HxWxD)mm - 72 x 72 x 85
Aux Supply - 230VAC, 50Hz
Input - Start Pulse (Free Potential) or Power ON
Output - Relay-1 and Relay-2 ON/OFF Delay mode
Range - 0-99.9/999 Sec/Min
| Business Type | Supplier, Retailer, Wholesaler, Trader, Distributor |
| Brand Name | MISTURA |
| Material | Plastic |
| Finishing | Polished |
| Current Type | AC |
| Shape | Rectangular |
| Color | Blue |
| Condition | New |
| Power Consumption | 2W-5W |
| Usage | Power Plants, Shopping Malls, INDUSTRIES, LABORATORY |
| Voltage | 220V,230 - 230V AC,415 -415V AC,110-110V AC |
| Packaging Type | Carton Box |
| Mounting Type | Panel Mounting Timer |
| Relay Type | SOLID STATE RELAY |
| Specialities | Stable Performance, High Performance, Heat Resistance, Durable |
| Frequency | 50Hz |
| Working Temperature | 55 |
| Phase | Single Phase |
| Warranty | 1 Year |
| Ambient Temperature | 55 |
| Country of Origin | India |
| Corrosion Resistance | Yes |
| Number of Poles | 2 Pole |
| Overall Weight | 100gm |
| Relay Height | 40mm |
| Max Switching Current | 6Amp |
| Rated Current | 5 Amp |
| Timer Type | Analog |
| Port | COURIER |
| Payment Terms | L/C, D/A, D/P, T/T |
| Delivery Time | 2-3 DAY |
Preferred Buyer From
| Location | Anywhere in India |
Model - R100
Description - On : On-delay
Output Contact - 1 - 1 C/O (SPDT)
Time Ranges - 30 : 30 sec 60 : 60 sec (factory set)
Supply Voltage - 230 - 230V AC, 415 -415V AC, 110-110V AC
Size - 22.5 mm (H)*75mm (W)*101 mm (D)
| Business Type | Supplier, Retailer, Wholesaler, Trader, Distributor |
| Brand Name | Milli Ohm |
| Material | Plastic |
| Driven Type | 230V |
| Color | BLACK |
| Application | INDUSTRY, LABORATORY |
| Length | 10-15cm |
| Feature | Durable, Easy To Use, High Accuracy, Light Weight |
| Display Type | Digital |
| Width | 10-20mm20-30mm |
| Type | Programmable Timer |
| Max. Current | 1AMP |
| Max. Voltage | 230V |
| Theory | CES 52C |
| Temperature Range | 10-50C |
| Country of Origin | India |
| Model | UTR |
| Frequency | 50 - 60 Hz |
| Power Source | Electric |
| Voltage | 220 V |
| Port | Courier |
| Payment Terms | L/C, D/A, D/P, T/T |
| Delivery Time | 2-3 day |
Preferred Buyer From
| Location | Anywhere in India |
MODEL -
1) UTR - 9611
Size - 96x96x50 mm
2) UTR - 7211
Size -72x72x85 mm
3) UTR - 4811
Size - 48x48x95 mm
Display -
Upper : 7 segment, 4 digit, 0.56" RED LED – Time
Lower : 7 segment, 4 digit, 0.4" GREEN LED - Set Time
INPUT
Start Pulse - Micro switch / Limit switch / Proximity
Start Pulse Type - Power ON / Enable / Trigger
OUTPUT -
Control Output - 2 - Relay (2 C/O, 5A, 230V AC), SSR (12V DC approximately) (Optional)
SPECIFICATION -
Set Point - 1 - Set Point - (Delayed ON/ Instant ON) (Configurable)
2 - Set Point - (Cycle Mode)
Operating Mode - Delayed ON / Instant ON / Cycle Mode (Configurable)
Reset Facility - Front & Back Both Reset Available
Time Setting Range - 99.99 / 999.9 / 999 sec, 99.59 min/sec, 999.9 min, 9999 min, 999.9 hrs, 9999 for hrs, 99.59 hrs/min (Configurable)
Counting Direction - Up / Down (Configurable)
Memory retention - Yes / No (Configurable)
Parameter lock - ON / OFF (Configurable)
Power Supply - 230V AC, 10%, 50hz 90-270V AC/DC, 50/60 Hz, SMPS
Indication - LED for Relay Status Indication
Enclosure Material - Plastic
Operating Ambient Temp - o o 0 C to 55 C
Relative Humidity - Upto 95% RH Non Condensing
| Business Type | Supplier, Retailer, Wholesaler, Trader, Distributor |
| Brand Name | MISTURA |
| Material | Plastic |
| Color | Black |
| Condition | New |
| Automatic Grade | Automatic |
| Application | INDUSTRY, LABORATORY |
| Size | 22.5 Mm (H)*75mm (W)*101 Mm (D) |
| Feature | Electronic Timer |
| Voltage | 220v, 440v, 415 -415V AC / 230 - 230 V AC |
| Type | Electronic Timers |
| Max. Current | 6AMP |
| Max. Voltage | 230V / 415V |
| Phase | Single Phase |
| Country of Origin | India |
| Model Number | SD100 |
| Rated Current | 5 Amp |
| Mounting Type | Panel Mounting Timer |
| Timer Type | Analog |
| Port | Courier |
| Payment Terms | L/C, D/A, D/P, T/T |
| Delivery Time | 2-3 day |
Preferred Buyer From
| Location | Anywhere in India |
Description - Star - delta Timer
Model - SD100
Output Contact - 1 C/O relay each for star & delta
Time Ranges - Star : 30 / 60 sec
Delta : 50 / 100 msec
Supply Voltage - 415 -415V AC
230 - 230 V AC
