Three Phase Panel Meter
Leading Wholesaler, Retailer, Trader, Distributor of and THREE PHASE AMPERE METER from Navi Mumbai.
| Business Type | Supplier, Retailer, Trader, Distributor |
| Color | BLACK |
| Condition | New |
| Automatic Grade | Automatic |
| Power Source | 230V |
| Application | Control Panels, Industrial Use, Power Grade Use, Industrial,Research Application,Laboratory |
| Feature | Easy To Use, Electrical Porcelain, Four Times Stronger, Proper Working, Superior Finish |
| Display Type | Digital |
| Type | Ammeter |
| Phase | Three Phase |
| Country of Origin | India |
| Model | AMP-9611 |
| Brand Name | Mistura |
| Voltage | 220 V |
| Frequency | 50-60 Hz |
| Port | Courier |
| Payment Terms | L/C, D/A, D/P, T/T |
| Delivery Time | 2-3 day |

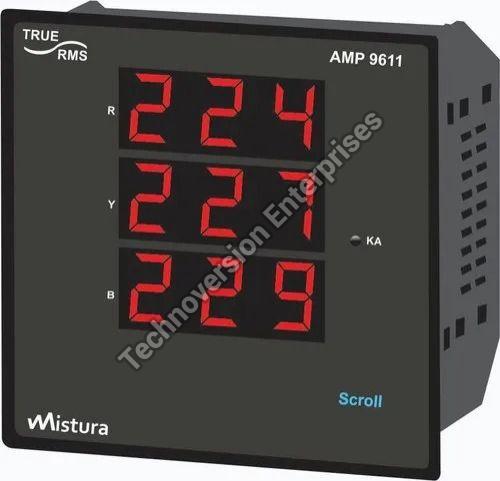

MODEL - AMP-9611
Dimension (HxWxD) mm - 96x96x50
Display - Three Display : 3 digit 0.56", LED display, 7 segment
KAmp Indication
INPUT -
Input Signal – 3-Phase / 3 Wire
Display Current (AC) - 0-6000 A
Specification –
CT Selection Primary - 5 ~ 6000A
CT Selection Secondary - 5A
Accuracy Class 1.0
Power supply - 230 V AC 10%, 50 Hz
Indication - LED for Ampere & Voltage Indication
Enclosure Material - Plastic
Operating Ambient Temp - o 0 0 C + 55 C
Relative Humidity - upto 95% Non Condensing
