Single Phase Digital Multifunction Meter

2,400.00 / Piece

1 Piece (MOQ)

Edit

Business Type	Supplier, Retailer, Trader, Distributor
Body Material	Plastic
Color	BLACK
Automatic Grade	Automatic
Click to view more

Preferred Buyer From

Location

Anywhere in India

Product Details

Power Source

Electric

Application

Industrial, Research Application,Laboratory

Feature

Accuracy, Durable, Light Weight, Low Power Comsumption

Voltage

230V

Display Type

Digital

Type

Multifunction Meter

Weight

100-200gm

Frequency

50Hz-65Hz

Warranty

1Year

Country of Origin

India

Model

AVH-9611

Operating Current

Single Phase

Phase

3 phase

Port

Courier

Payment Terms

L/C, D/A, D/P, T/T

Delivery Time

2-3 day

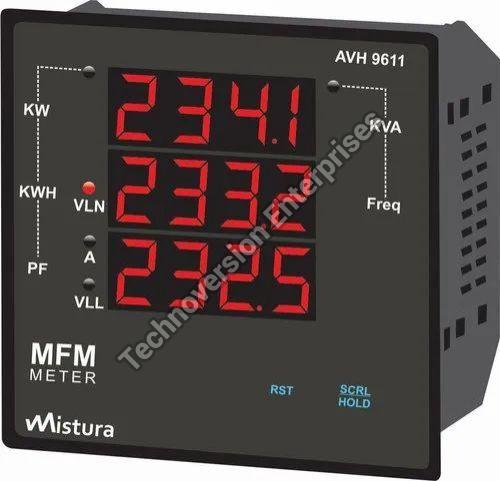

1-PHASE MULTI FUNCTION METER

MODEL -AVH-9611
Dimension (HxWxD) mm - 96x96x50
Panel Cutout (mm) - 92x92

Display - Three Display : 7 segment, 4 digit 0.56" RED LED display,

INPUT –
Input Signal - 10, 2 Wire
Voltage - 230V AC, 50Hz

CT ration Primary - 5~400A
CT ratio Secondary - 5A

Parameters - A, V, Hz, PF, KW, Kwh, KVA
Specification -
Reset Facility - Reset key for kWh (Active Energy)
Special Feature - AUTO / MANUAL scrolling mode
Auto decimal shifting for current (resolution 0.01A or 0.1A)

Accuracy - Class 1.0
Power supply - 230 AC 10%, 50 Hz
.
Enclosure Material - Plastic
Operating Ambient Temp - o 0 0 C + 55 C
Relative Humidity - upto 95% RH Non Condensing
(Notes : CT ratio secondary /5 & /1 also available in model PM-11H)
